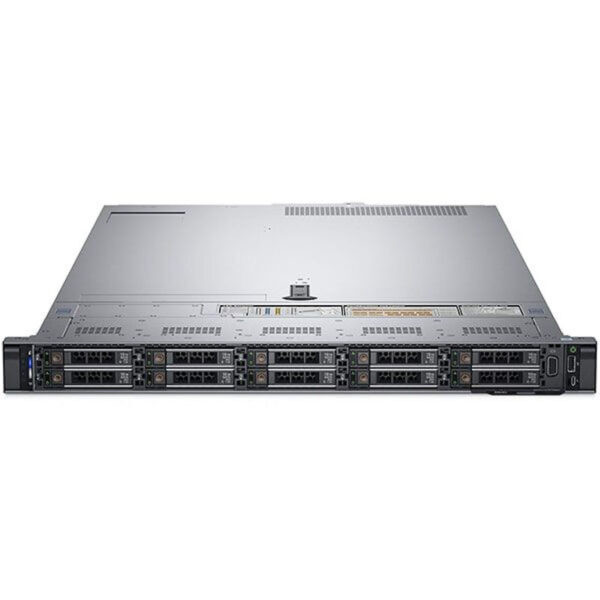

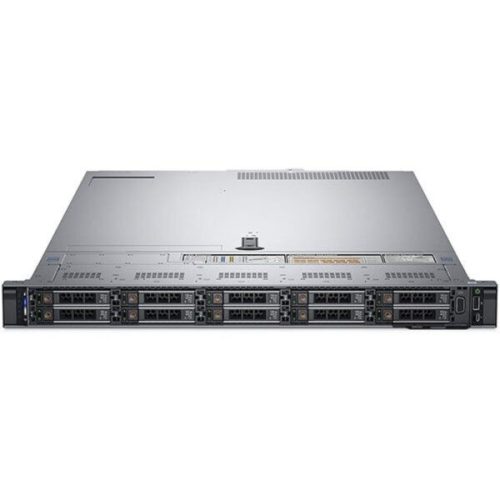

Dell PowerEdge R640 10SFF FULL NVME 2x PCIe Slots Configure-to-order Server Chassis

Gyártói cikkszámok: PER640-10SFF-10NVME-2PCIE

Processor: Up to two 2nd Generation Intel® Xeon® Scalable processors, up to 28 cores per processor
Memory: 24 DDR4 DIMM slots, Supports RDIMM /LRDIMM, speeds up to 2933 MT/s, 3TB max, Up to 12 NVDIMM, 192 GB Max, Up to 12 Intel® Optane™ persistent memory PMem, 6.14TB max, (7.68TB max with PMem + LRDIMM), Supports registered ECC DDR4 DIMMs only
Storage controllers: Internal boot, Internal Controllers: PERC H330, HBA330, HBA350i (adapter only), H730P, H740P, H750 (adapter only), External Controllers: H840, 12 Gbps SAS HBA, HBA355e (adapter only, non-RAID), Software RAID: S140, Boot Optimized Storage Subsystem (BOSS): HWRAID 2 x M.2 SSDs 240 GB, 480 GB, Internal Dual SD Module1
Drive bays: Front drive bays: Up to 10 x 2.5” SAS/SATA (HDD/SSD) with up to 8 NVMe SSD max 76.8TB or up to 10 NVMe drives max 64TB, or up to 4 x 3.5” SAS/SATA HDD max 64TB, Rear drive bays: Up to 2 x 2.5” SAS/SATA (HDD/SSD), NVMe SSD max 15.36TB, Optional DVD-ROM, DVD+RW
Power supplies: 495W Platinum, 750W Platinum, 750W 240HVDC Platinum*, 1100W 48VDC, 1100W Platinum, 1100W 380HVDC Platinum*, 1600W Platinum, 750W Titanium, Hot plug power supplies with full redundancy option, Up to 8 hot plugs fans with full redundancy, *Available in China and Japan only
Dimensions: Form factor: Rack (1U) Height: 42.8mm (1.69”), Width*: 482.0mm (18.98”), Depth*: 808.5mm (31.8”), Weight: 21.9kg (48.3 lbs.), *Dimensions include bezel.
Embedded management: iDRAC9, iDRAC Direct, iDRAC RESTful API with Redfish, Quick Sync 2 wireless module (optional), Bezel Optional LCD bezel or security bezel
OpenManage™ Software: OpenManage Enterprise, OpenManage Mobile, OpenManage Power Center
Integrations and: Integrations: Microsoft® System Center, VMware® vCenter™, BMC Truesight, Red Hat Ansible Modules
connections: Connections: IBM Tivoli® Netcool/OMNIbus, IBM Tivoli® Network Manager IP Edition, Micro Focus® Operations Manager I, Nagios® Core, Nagios® XI
Security: TPM 1.2/2.0, TCM 2.0 optional, Cryptographically signed firmware, Secure Boot, Silicon Root of Trust, Secure erase, System Lockdown (requires iDRAC Enterprise or Datacenter)
I/O & Ports: Network Options: 4 x 1GbE, 2 x 10GbE + 2 x 1GbE, 4 x 10GbE, 2 x 25GbE, Front Ports: 1 x Dedicated iDRAC direct USB, 1 x USB 2.0, 1 x USB 3.0 (optional), 1 x Video, Rear Ports: 1 x Dedicated iDRAC network port, 1 x Serial, 2 x USB 3.0, 1 x Video, PCIe: 3 x Gen3 slots all x16, Video Card: 2 x VGA
Accelerator options: Up to 3 single-width GPU (NVIDIA T4) or up to 1 FPGA See Dell.com/GPU for latest information.
Supported operating systems: Canonical® Ubuntu® LTS, Citrix® XenServer, Microsoft Windows Server® LTSC with Hyper-V, Red Hat® Enterprise Linux, SUSE® Linux Enterprise Server, VMware® ESXi


Garancia: 5 év el- és visszaszállításos alkatrészcsere-garancia


Egyedi árazási igény illetve műszaki, konfigurációs, kompatibilitási kérdés esetén kérjük vegye fel velünk a kapcsolatot email-ben vagy telefonon.
